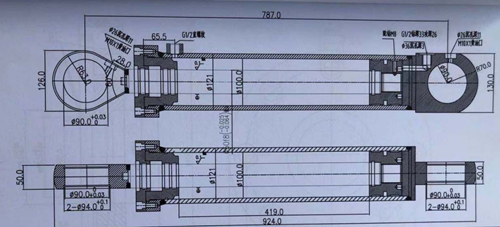

JSRUIYA Hydraulic Machinery specialize in customizing Replacement Welded Rod Hydraulic Cylinders,Double-acting Welded Rod Hydraulic Cylinders according to customer’s requirements and these cylinders can be applied to large equipment. From establishment, we have continuously customized large, long or heavy hydraulic cylinders for over 10 years. The following are part of our customized heavy duty hydraulic cylinder drawings.

Technical Parameters

Bore: 40-200mm
Rod:180-200mm
Stroke：10-15000mm
Working Pressure：2500-8000PSI
Piston speed：maximum 1m/s
Temperature range：-40℃ to +300℃
Types:Single acting 、Double acting 、Telescopic 、Tie Rod and Sensor&positioning Hydraulic cylinder

Material parameters

Material：Carbon steel, Alloy steel, Stainless steel
Bore: GB20#steelL OR GB45#steel
Piston: GB45#steelL OR nodular iron
Honed tube：Heavy-wall Honed Steel ,Heat treatment, honing, rolling
Piston rod：Tempering, plated nickel, Chrome or ceramic
Seal ring: Imported or high quality chinese brand
Piston Rod:Polished Chrome
Ring Material:Cast Iron
Coating：Sandblasting, primer paint, middle paint,  finish paint
Mounting style：Earrings, flange, foot mounting, screw thread,base type,  trunnion type, pin type, ball type
