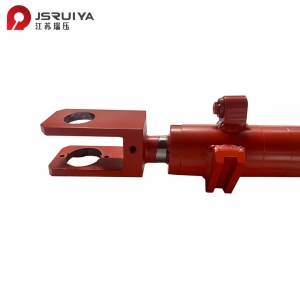

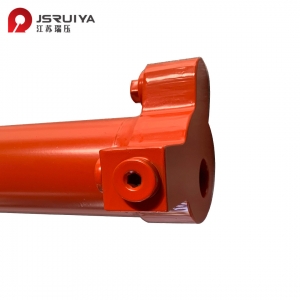

JSRUIYA Hydraulic Cylinder specializes in the engineering and manufacture of small bore welded hydraulic cylinders for a variety of applications. Our small bore hydraulic cylinders are exceptionally rugged high-quality cylinders that are built for optimal life especially in long duty cycle applications.
JSRUIYA Cylinder’s small bore cylinder fabrication capabilities include custom engineering of a wide array of cylinder styles and types, all the way to final finish of every cylinder.

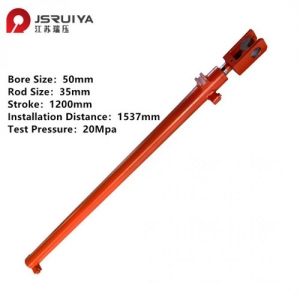

Technical Parameter:
|
Item |
Custom Welded Hydraulic Cylinder |
|
Single Acting/Double Acting |
Single Acting |
|
Duty Rating |
Heavy Duty |
|
Bore Dia. |
50 mm |
|
Stroke Length |
1200 mm |
|
Rod Dia |
35 mm |
|
Installation Distance: |
1537mm |
|
Working Pressure |
16Mpa |
|
Test Pressure |
20Mpa |
|
Piston Material |
Ductile Iron |
|
Tubes |
Precision Honed Steel |
|
Tie Rods |
High Tensile |
|
Finish |
Orange Red |
Material parameters:
|
Material |
Carbon steel, Alloy steel, Stainless steel |
|
Bore/Piston |
GB20#steelL OR GB45#steel |
|
Honed tube |
Heavy-wall Honed Steel ,Heat treatment, honing, rolling |
|
Piston rod |
Tempering, plated nickel, Chrome or ceramic |
|
Seal ring |
Imported or high quality chinese brand |
|
Piston Rod |
Polished Chrome |
|
Ring Material |
Cast Iron |
|
Coating |
Sandblasting, primer paint, middle paint, finish paint |
|
Mounting style： |
Earrings, flange, foot mounting, screw thread,base type, trunnion type, pin type, ball type |
We can manufacture according to the detailed drawings you offer. If you don’t have drawings, you can tell us your specific requirements. Our engineers will design production plans to meet your exact expectations.
-
